AMS Rack System

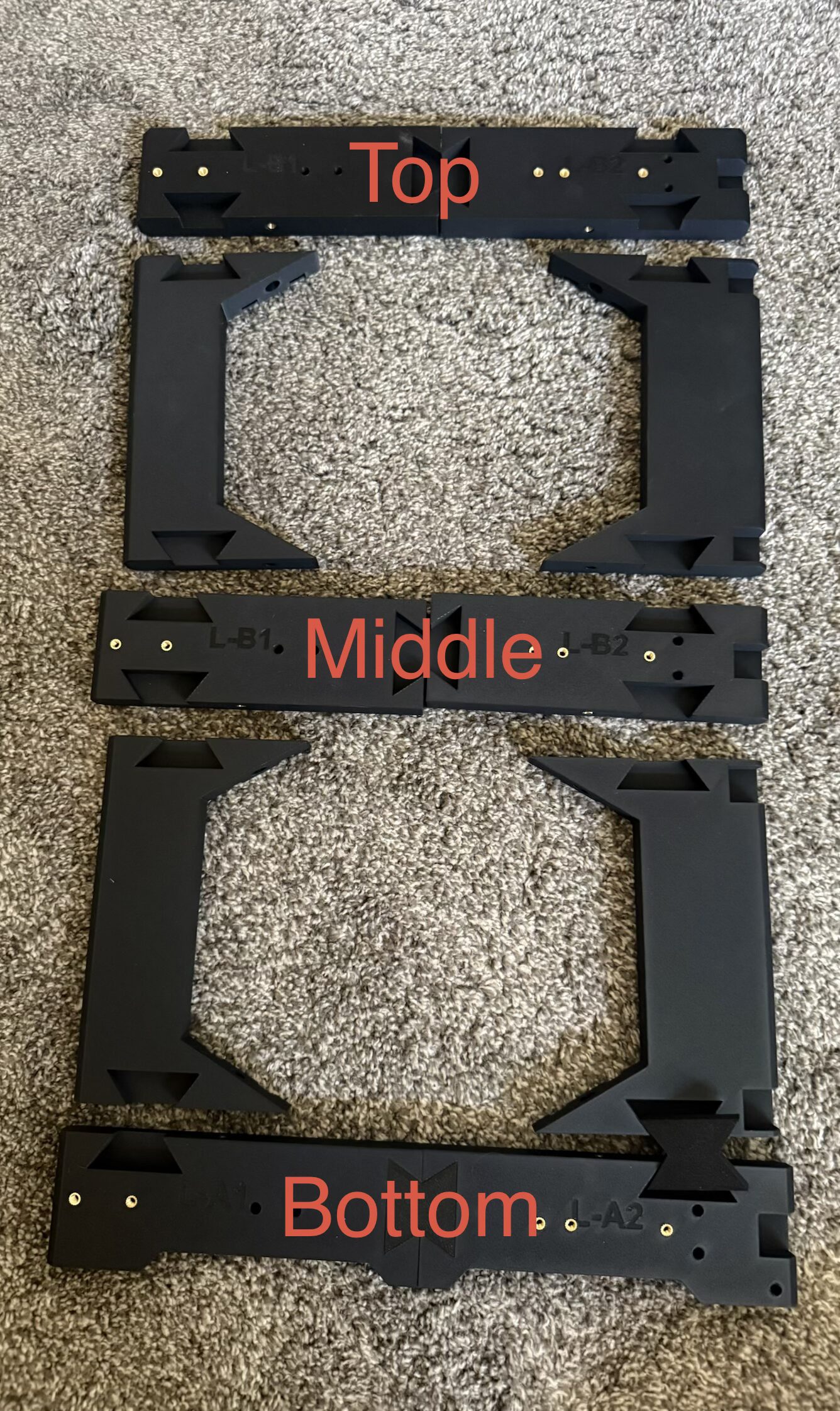

Before You Begin – Unboxing & Part Orientation

Assembly Instructions

Please follow the steps below in order. Do not fully tighten screws until instructed.

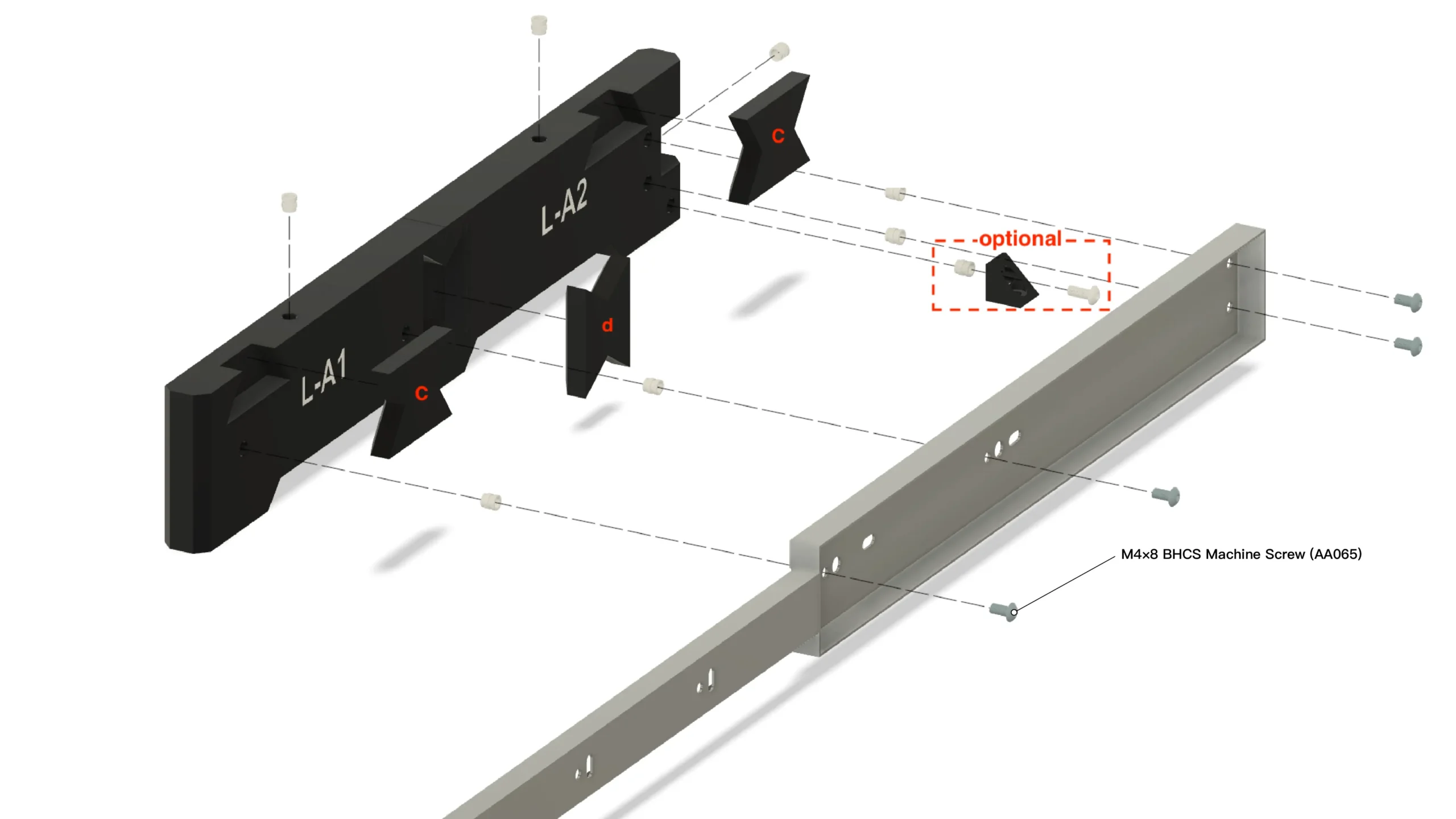

Step 1 – Prepare Main Frame

Identify the left (L-A1) and right (L-A2) frame sections. Install the insert nuts into the designated holes at the top of each frame section.

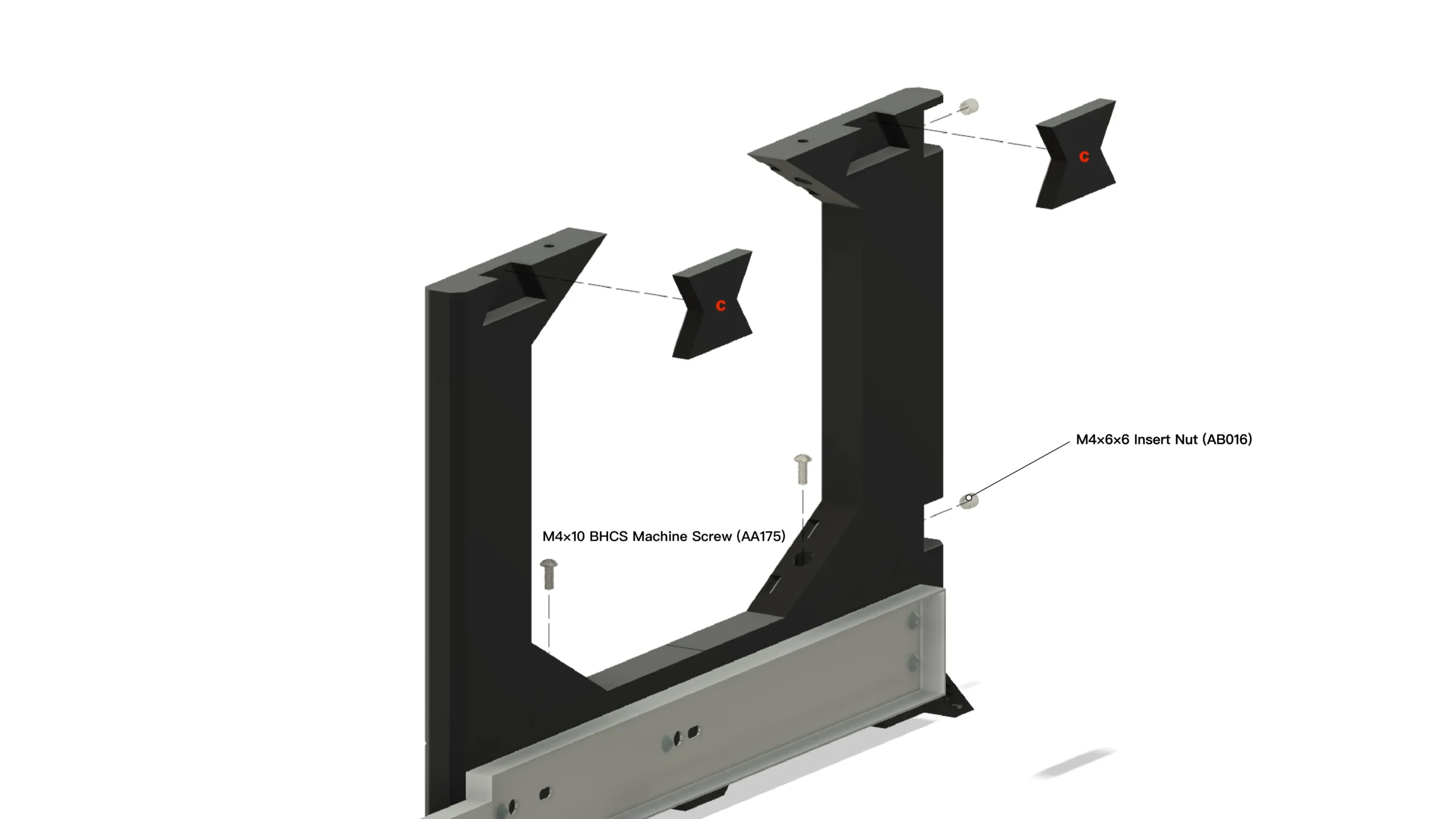

Step 2 – Install Center Support Brackets (Part C)

Slide the C brackets into position on both sides of the frame. Secure using:

• M4x10 BHCS Machine Screws (AA175)
• M4x6x6 Insert Nuts (AB016)

Do not fully tighten yet.

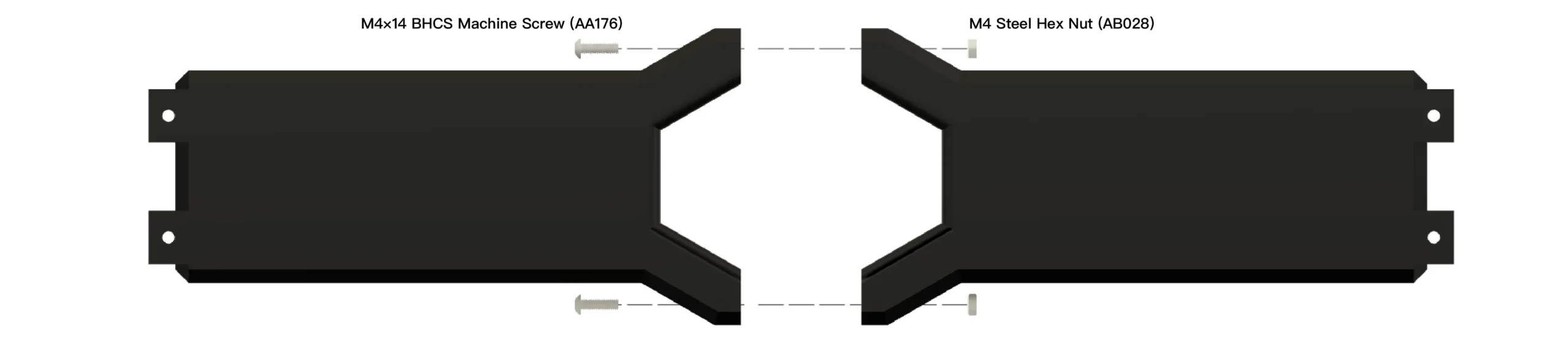

Step 3 – Build Lower Cross Bar

Align both frame halves together. Install:

• M4x14 BHCS Machine Screw (AA176)
• M4 Steel Hex Nut (AB028)

Tighten securely once both top and bottom screws are installed.

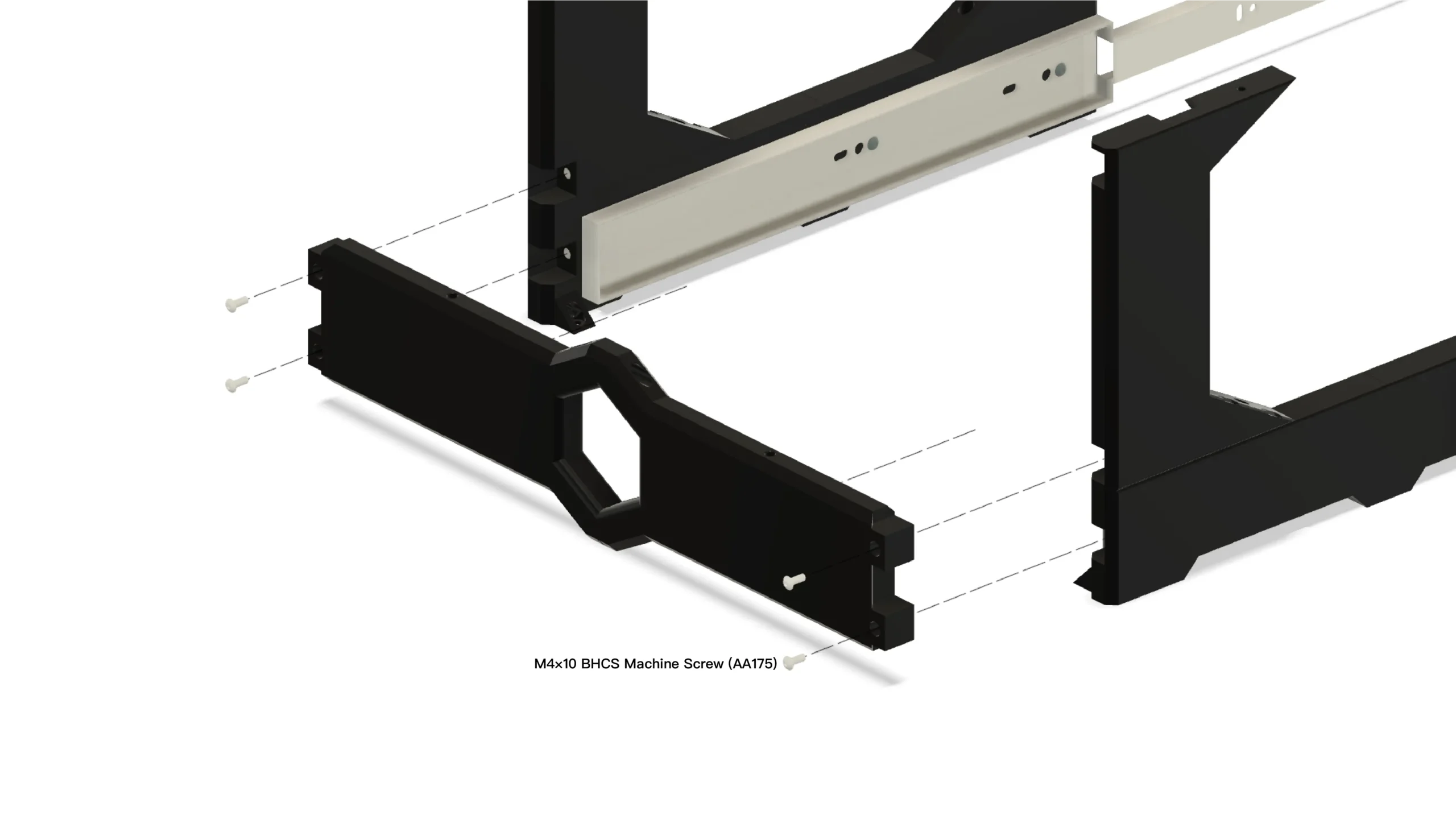

Step 4 – Install Lower Cross Bar

Attach the lower cross bar between the vertical frame supports. Use:

• M4x10 BHCS Machine Screws (AA175)

Ensure the bar sits flush before tightening.

Step 5 – Build Back-Middle Cross Bar

Position the front frame panel with the hex opening centered. Secure with:

• M4x10 BHCS Machine Screws (AA175)

Install screws evenly on both sides before fully tightening.

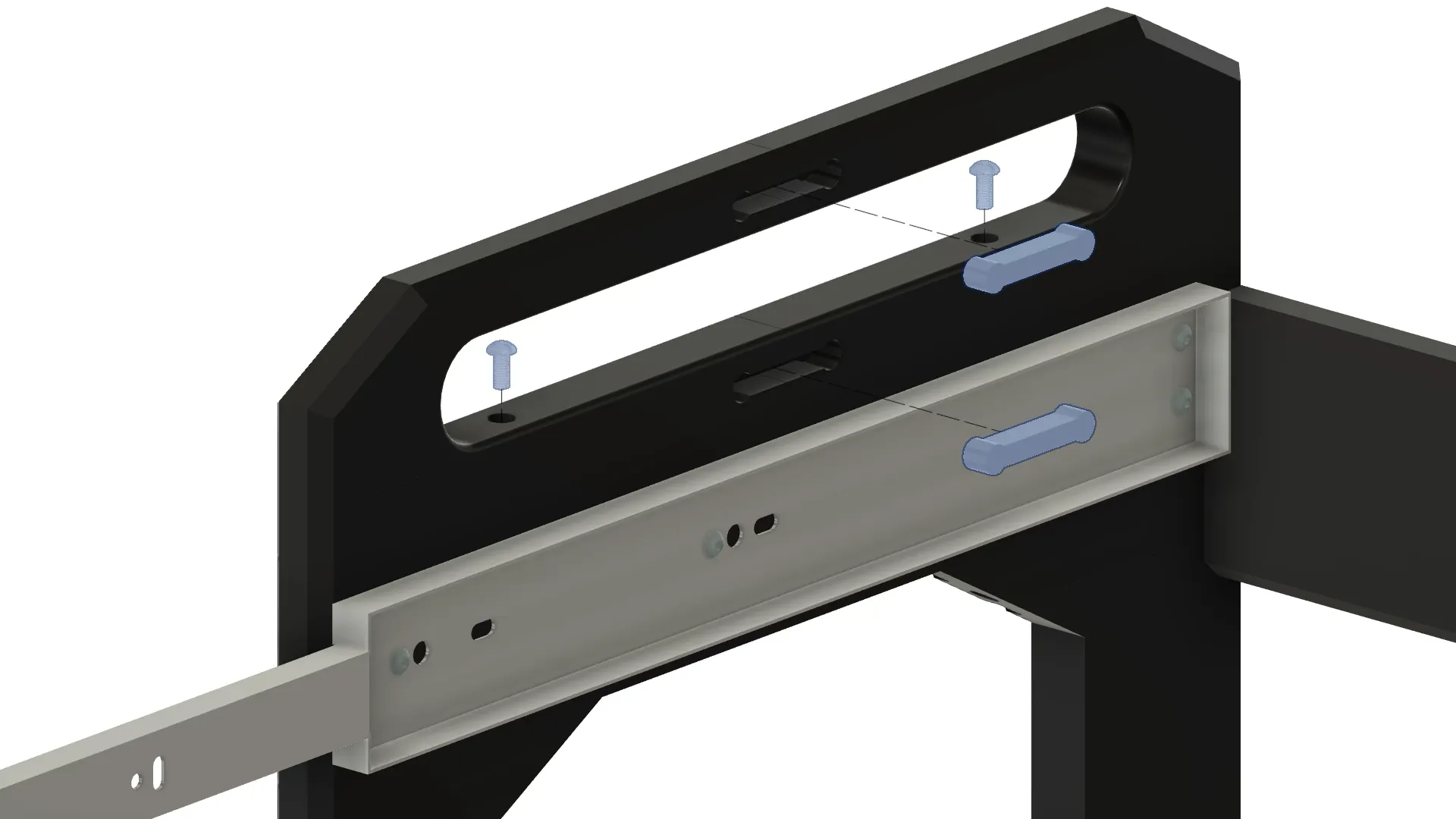

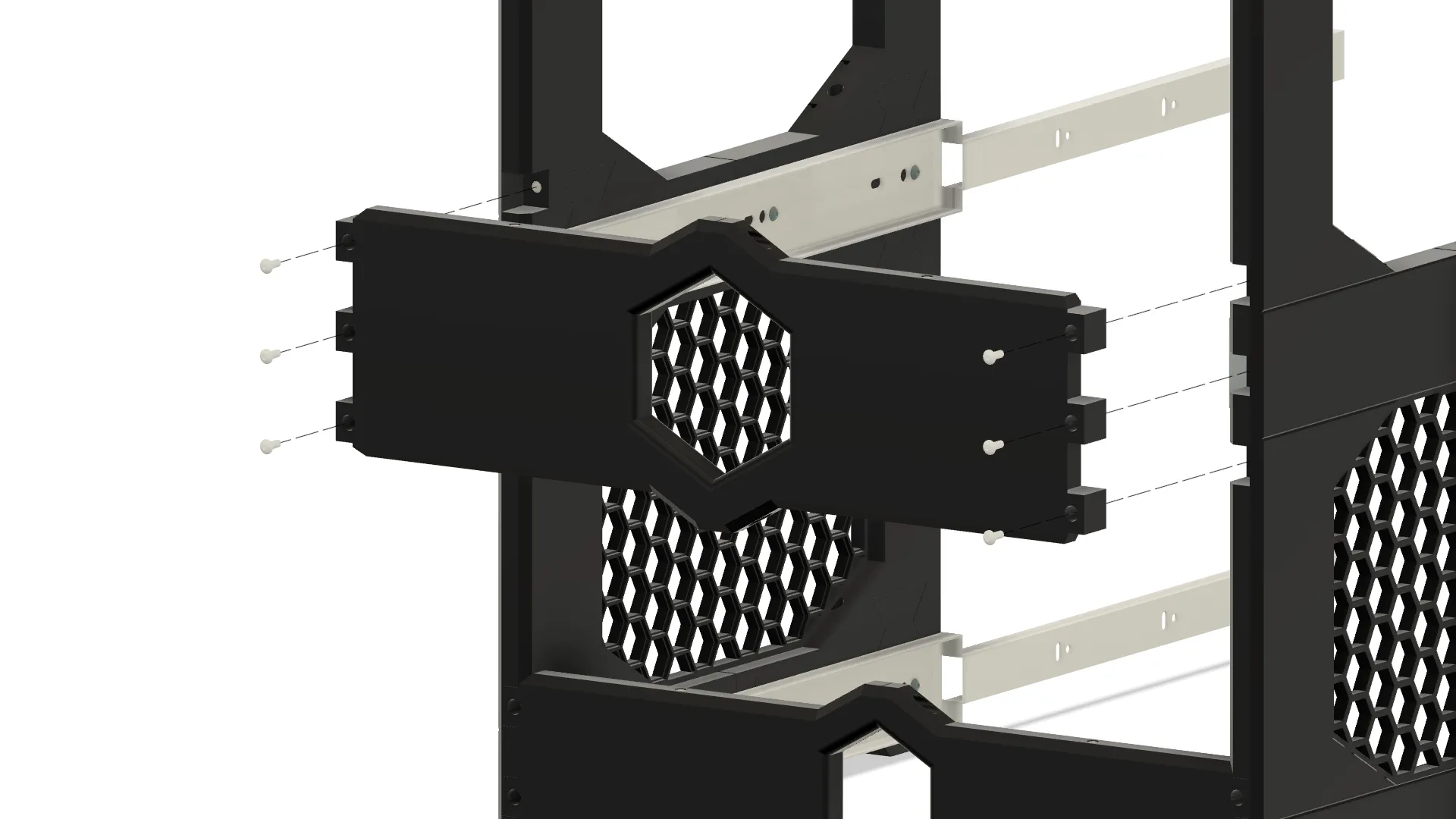

Step 6 – Install Sliding Rail Assembly

Slide the metal rail into the frame brackets. Align the mounting holes and secure using:

• M4x8 BHCS Machine Screws (AA065)

Ensure smooth sliding movement before tightening completely.

Step 7 – Attach Top Handles

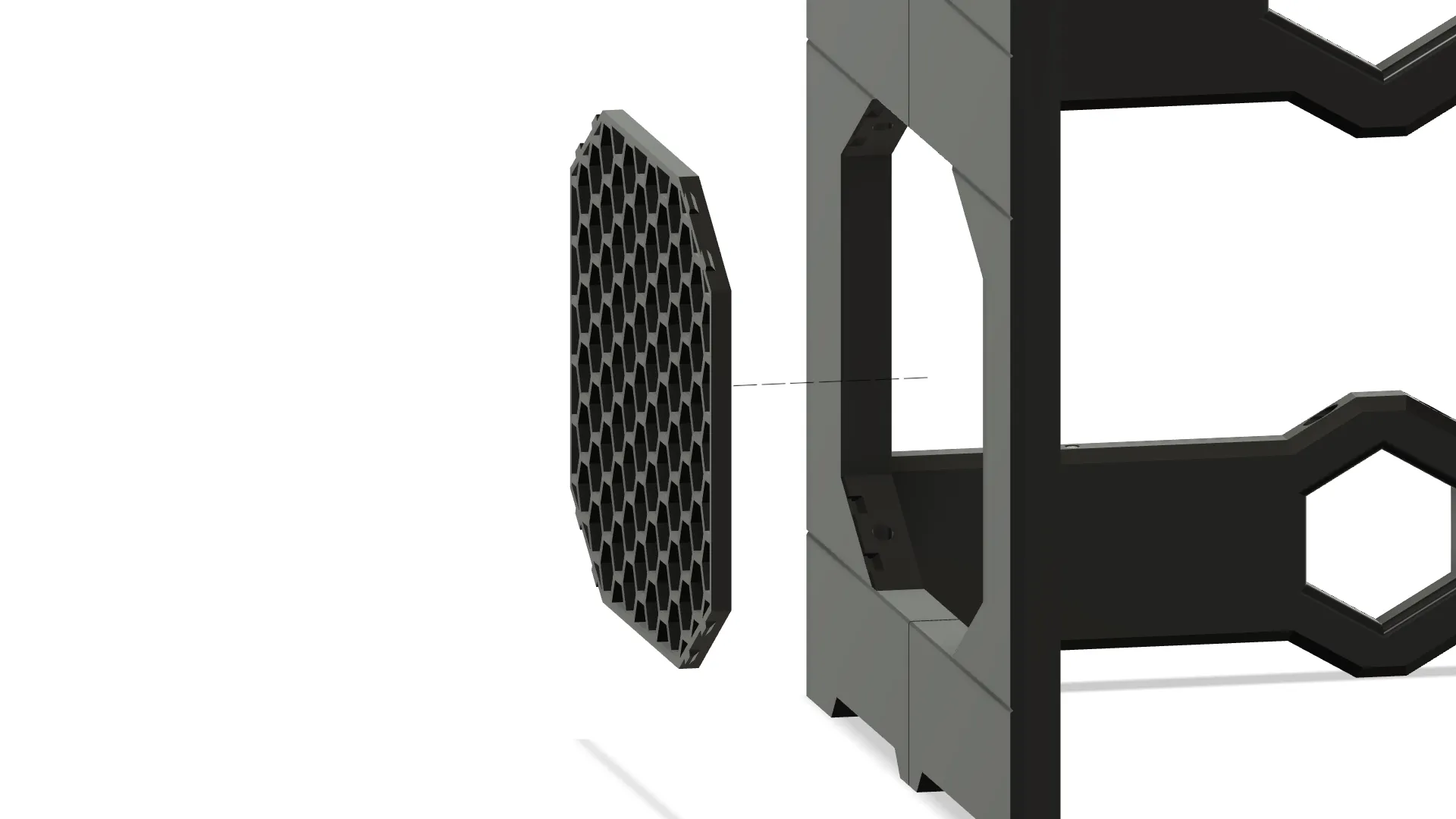

Align the rear honeycomb panel with the frame. Secure using the provided screws. Ensure panel sits flat against mounting surface.

Step 8 – Final Assembly & Tightening

Install remaining fasteners and tighten all hardware fully. Check alignment and confirm:

• All screws are secure
• Frame is square
• Sliding components move freely

Final Check

• Re-check all screws after initial installation
• Confirm proper alignment before use
• Retighten hardware after first use if necessary
